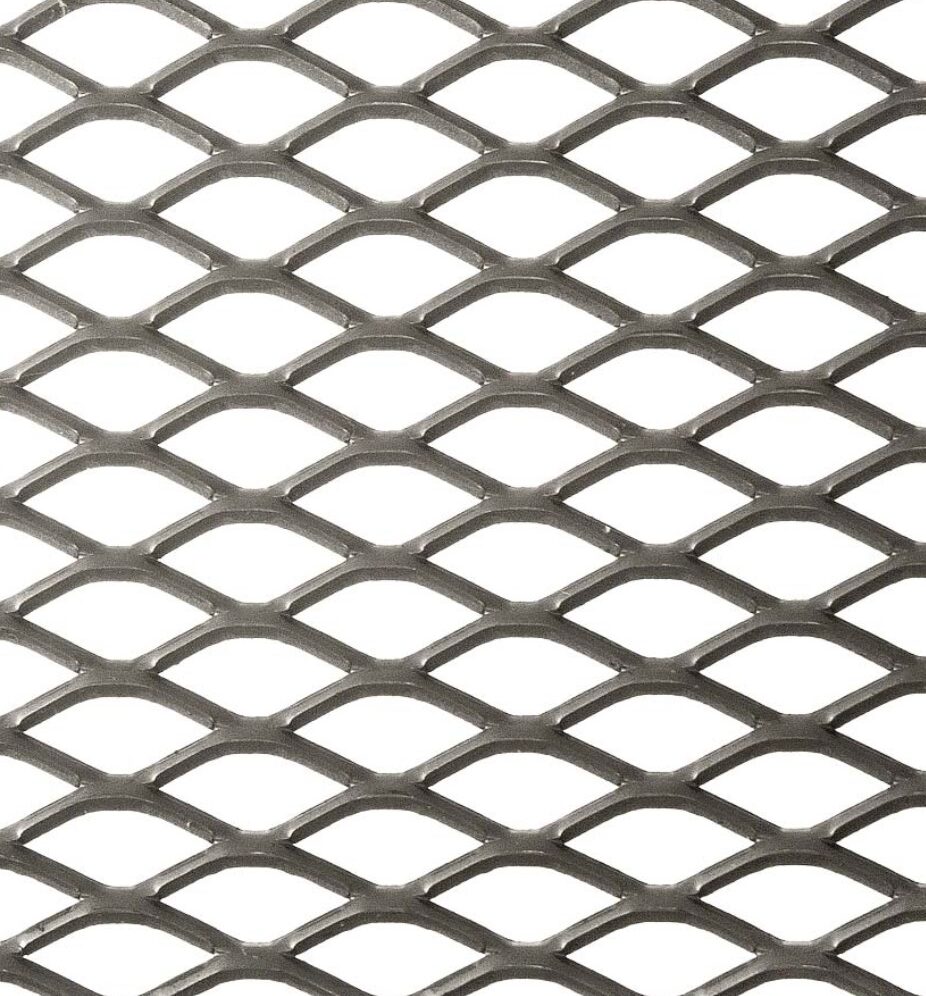

Standard expanded metal, also known as raised expanded metal, is a type of metal stock with a diamond-shaped pattern that’s created by stretching and slitting the material. It’s a versatile material that can be used for a variety of applications, including:
• Decorative and architectural features: Standard expanded metal can be used for decorative and architectural features.
• Filtration systems: Standard expanded metal can be used in filtration systems.
• Protective barriers: Standard expanded metal can be used as a protective barrier.
• Ventilation systems: Standard expanded metal’s open area percentage allows for improved airflow, making it ideal for ventilation systems.
• Security screenings: Standard expanded metal’s open area percentage makes it ideal for security screenings.
• Flooring: Standard expanded metal’s raised diamond-shaped openings make it non-slip, providing good traction for flooring in industrial and commercial areas.
• Heavy-duty applications: Standard expanded metal’s strength and durability make it suitable for use in heavy-duty applications.
